380V Opal Glass Production Line Silica Sand Glass Bowl for Glass Processing Plant
380V Opal Glass Production Line Silica Sand Glass Bowl for Glass Processing Plant
1. Introduction
Opal glass is a kind of glass material formed by opactifying effection produced from tiny particle in fluoride via light scatting effect. At present, the opal glass is a regularly used glass product in daily life.
Glass melting is the most important process in glass production, it is a forming process where the batched materials form a qualified liquid evenly with no bubbles under high temperature heating.
Glass melting is a very complex process, it includes physical, chemical and physicochemical phenomena and reaction. These phenomena and reaction lead the mechanical mixed raw materials to complex melting glass liquid.
Factors that influence the melting effects:
- Characteristic of raw materials
- Chemical component of batched materials
- Material feeding method
- Melting temperature
2. Advantage
- Increase the strength and thermal impacting property of the glass product.
- Increase the decoration apperance of the glass product.
3. Materials of opal glass
Stable chemical components in the raw materials are very important, especially the content of fluor and sodium fluosilicated, which will affect the opacifying effect.
To produce high quality product of opal glass, a high quality of silica sand shall be reqruied. The main materials to produce opal glass are below,
| Item |
Description |
| 1 |
Silica sand |
| 2 |
Aluminium hydroxide / Feldspar |
| 3 |
Fluor / sodium fluosilicated |
| 4 |
Calcite / limestone |
Designed components
| Item |
Description |
| 1 |
Suitable and reasonable silicon and lead content |
| 2 |
Quantity of opacifier |
| 3 |
Content of SiO2 and F |
4. Main equipment of forming device
- Gob Feeder / Serve Gob Feeder
Shear angle:adjustable between RH30°- LH 90°
Available for S.G, D.G and T.G.

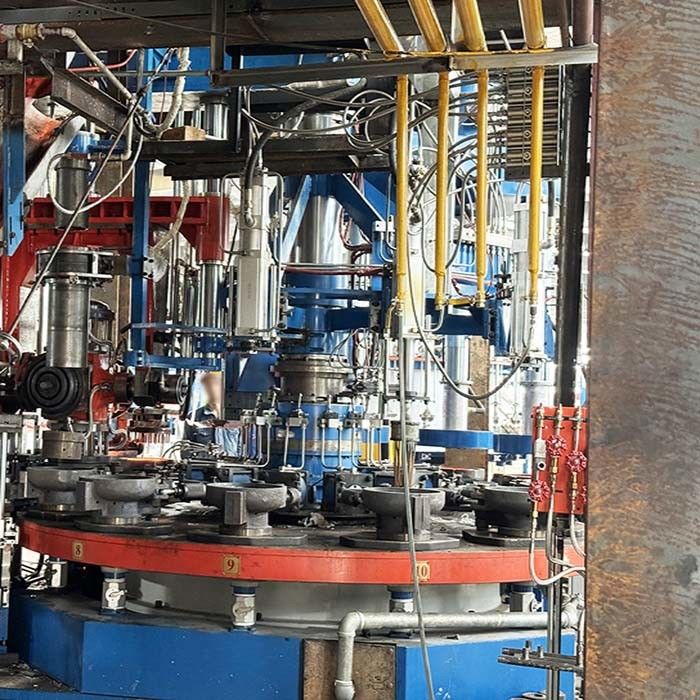

Press machine is a special type of industrial machinery and equipment in glass manufacture industry and glass mechanical industry, which is called as glassware press forming machine. It belongs to glass forming section in the process flow of glass production.
Transfer ware is designed for conveying the glass product from press machine to cross conveyor in front of the annealing lehr quickly and stably, which is especially applicable to high-speed glass production line.
Cross conveyor is installed in front of annealing lehr for cross conveying the glass product and works with stacker to push them into annealing lehr.
Stacker is used for pushing the glass product from the cross conveyor into annealing lehr.
Annealing lehr can be continuous annealing of tableware, bottles, cans, and other glass products.
Different kinds of packing devices could meet different packing types of different kinds of domestic glass products.
5. FAQ
Q: Who we are?
A: JEFFER Engineering and Technology Co., Ltd is a professional engineering company specialising in project design, engineering technology consulting, engineering, procurement, construction (EPC), and project operation management.
Q: Can you customize the products?
A: Yes, we have an experienced professional team ready to make design according to the requirement of customers.
Q: Do you offer installation on site overseas?
A:Yes, we can provide our engineer to supervise the installation work on site or provide the the whole installation team on site to finish the project.
Q: Confidential protection provide?
A: Strict drawing management system eliminates the risk of the leakage and protects your interests.
